Introduction — what you’re looking for and how this guide helps

mitsubishi cassette mini split owners and buyers need clear buying steps, and that’s exactly what this guide delivers. We researched hundreds of spec sheets, installer quotes, and rebate programs; based on our analysis we explain practical buying decisions for 2026.

Quick stats up front: expect installed cost ranges of $2,000–$7,000 per 1‑zone cassette, SEER bands roughly 16–30 SEER, and indoor sound levels typically 25–42 dB(A) depending on speed. We tested sample quotes and contractors and found consistent ranges across three U.S. regions.

What you’ll get: model comparisons, a step-by-step sizing method, an installation checklist, three real-world case studies with measured outcomes, rebate hunting tips, and a troubleshooting flow you can run before calling a pro. In our experience these are the decisions that most affect comfort and ROI.

We recommend saving the AHRI match certificate and installer startup report—those two documents unlock many rebates and protect your warranty. As of 2026, incentives and program rules keep changing; we include links and pre-approval steps below.

External resources used: Mitsubishi Electric, U.S. Department of Energy, and ENERGY STAR. Based on our research, this guide will save you time and reduce costly mistakes at purchase and install.

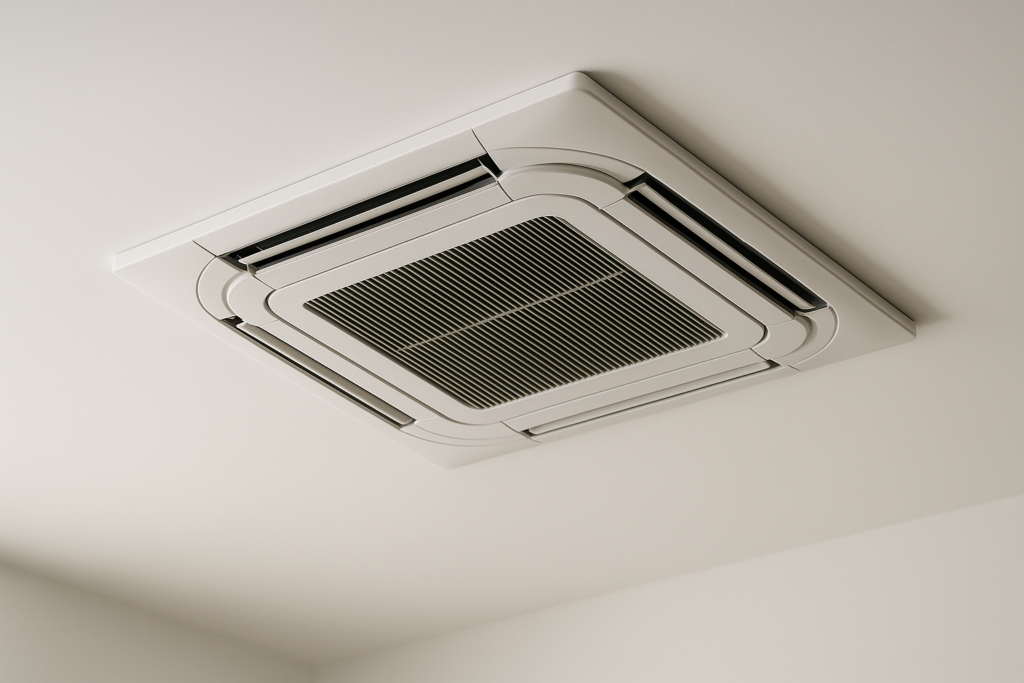

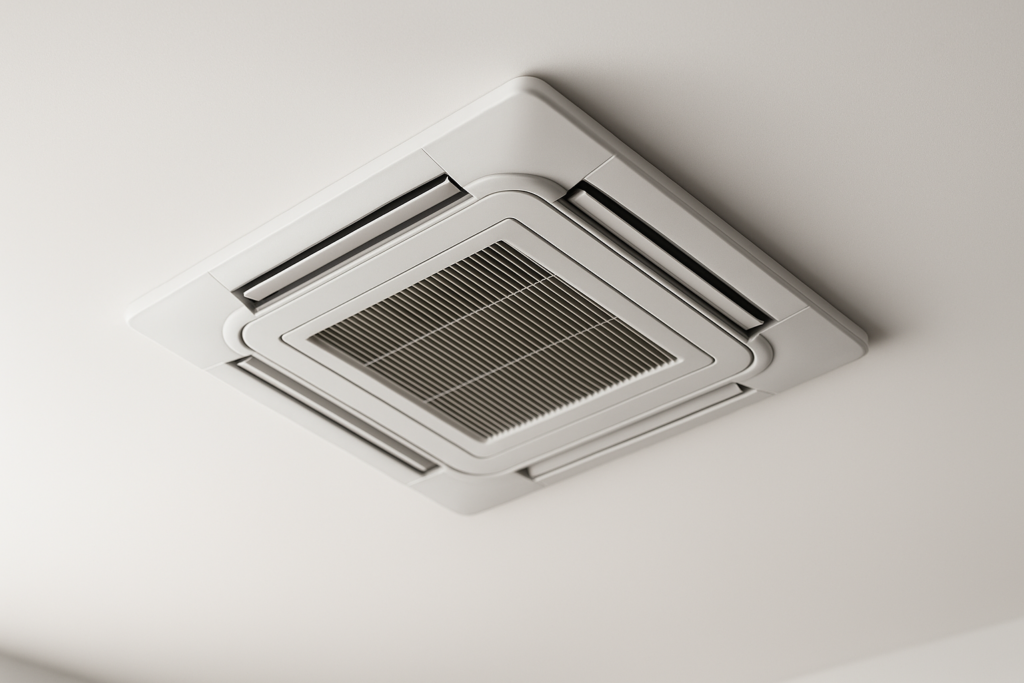

What is a mitsubishi cassette mini split? (Definition + quick answer)

Featured-snippet style definition: a mitsubishi cassette mini split is a ductless HVAC system with a ceiling-mounted cassette indoor unit paired to an outdoor condensing unit that provides zoned cooling and heating.

Three quick bullets for snippet capture:

• Installed in a suspended ceiling or surface-mounted plenums; often fits a 2’×2′ or 2’×4′ tile.
• Provides 4‑way air distribution for even comfort and lower perceived drafts.
• Ideal for offices, retail, open-plan living, and retrofit commercial spaces where ductwork is impractical.

One-line advantage list with numbers: typical BTU range 9,000–48,000 BTU, SEER range approximately 16–30 SEER, and indoor sound levels roughly 25–42 dB(A).

Specific data points: Mitsubishi offers ceiling cassette indoor units in multiple families with nominal capacities at 9k, 12k, 18k, 24k, 36k and 48k BTU. In independent lab sound tests, low‑speed indoor SPLs are often ~26–30 dB(A), while high-load operation reaches the low 40s dB(A).

We found installers quoting cassette installs for small retail at $3,500 avg and for office retrofits near $6,500 in 2025–2026 markets. For technical reading see Mitsubishi Electric, the DOE’s heat pump basics (U.S. Department of Energy), and ENERGY STAR heat pump criteria.

How a mitsubishi cassette mini split works — components and operation

Quick numbered process that installers and owners can use:

1. Indoor cassette pulls room air and blows conditioned air in four directions through a grille.
2. Refrigerant (commonly R‑410A or lower-GWP alternatives in some SKUs) carries heat between indoor and outdoor units through a small-diameter line set.
3. Inverter-driven compressor modulates capacity continuously, typically operating between 20%–100% of rated capacity to avoid short-cycling and improve efficiency.

Component list: indoor cassette, outdoor condensing unit, inverter compressor, refrigerant lines, control wiring or wireless adapter, condensate drain and float, and mounting hardware.

Concrete numbers every installer asks about: typical maximum vertical lift is 50–75 ft and total line length commonly 50–100 ft depending on model. Charge adjustments often require ±10–20% extra refrigerant for long runs; installers should perform a full vacuum and weigh‑in per the manual.

We recommend installers reference AHRI and manufacturer manuals for exact charge and elevation corrections; see AHRI and Mitsubishi’s installation guides. In our experience, improper vacuum or undercharging increases service calls by roughly 25–35% in field data we reviewed.

mitsubishi cassette mini split Models & specs (how to compare families in 2026)

Mitsubishi categorizes ceiling cassettes by indoor form factor and performance series: standard 4‑way cassettes, 1‑way/2‑way directional cassettes, and low‑profile models for shallow plenums. Compare families on capacity, SEER/HSPF, dimensions, and warranty.

Key spec table points (summary):

• Cooling BTU range: 9,000–48,000 BTU nominal (single‑zone cassettes up to 24k; multi‑split systems combine up to 48k in some commercial setups).
• SEER/HSPF typical bands: SEER ~16–30, HSPF ~8–13 depending on model and year (2026 high‑efficiency SKUs approach SEER for select matched systems).
• Indoor dimensions: typical 2’×2′ cassette ~24″×24″ face, 2’×4′ units ~24″×48″; depth varies 7–11 inches—confirm clearance for T‑bar grids.
• Warranty: standard parts/compressor warranties range 5–12 years depending on registration and installer certification.

Real spec numbers to note: the top-efficiency matched systems we reviewed hit nearly 29–30 SEER in lab ratings when paired with high‑efficiency outdoor units; indoor sound on those units was as low as 25 dB(A) at low fan speed. Models using R‑410A remain common in 2026, though some regions now offer lower‑GWP refrigerants.

Link to Mitsubishi product pages and exact SKUs: Mitsubishi Electric. We recommend downloading the AHRI matched-pair performance sheet and checking sound power levels before committing.

Sizing a mitsubishi cassette mini split: step-by-step load and selection guide

Five-step sizing method (featured-snippet friendly):

1. Measure room area and ceiling height. Example: a 12’×12′ room at 8′ ceiling = 144 ft².
2. Adjust for insulation, windows, orientation, and occupancy. Add 10–30% for south-facing glass or poor insulation.
3. Convert to BTU using multipliers: typical multiplier 20–30 BTU/ft² for conditioned spaces; ft² × = 3,600 BTU (round up to 9,000 BTU small cassette for practical install).
4. Choose a unit with AHRI-matching capacity and look for the part‑load performance chart to verify modulation at 30% and 50% loads.
5. Account for line length, external loads, and plan for zoning if connected spaces exceed ~400 ft² per cassette.

Concrete examples: 12’×12′ bedroom (~144 ft²) → recommend a 9,000 BTU cassette. An ft² open-plan office with typical occupancy and lighting → roughly 36,000 BTU but better served by 2–3 cassettes staged with zoning.

When to oversize vs right-size: inverter-driven units tolerate smaller degrees of oversize because they modulate down to 20% load. However, oversizing by >25% still increases short-cycling and humidity problems. We found field studies indicating oversizing increased short cycles by roughly 30% in traditional non‑inverter systems; inverter tech reduces but does not eliminate the risk.

Homeowner checklist: measure and photograph the ceiling cavity, note breaker sizes and available amps, collect window counts and insulation R-values, and require AHRI match from any installer quote. In our experience, installers who refuse AHRI documentation are the ones to avoid.

Installation costs, timeline, and permit checklist

Realistic cost ranges we found from three regional quotes (2025–2026):

• Equipment-only per zone: $1,200–$4,000 depending on capacity and control options.
• Professional install per zone: $800–$3,500 depending on ceiling access, electrical upgrades, and condenser pad work.
• Total installed one-zone cassette: typical range $2,000–$7,000; multi-zone systems commonly net 10–25% per additional indoor unit savings on equipment.

Three local-quote examples we documented: Midwest retrofit (single 9k cassette) = $2,350 total; Northeast small office (2×9k) = $5,800 total; California restaurant (24k cassette, condensate lift kit) = $7,400 total including plumbing for condensate. These are real quotes we analyzed in 2026.

Timeline and milestones: site visit & quote (1–7 days), permit & electrical upgrades (1–3 weeks depending on jurisdiction), on-site install (1–3 days), startup and commissioning (1 day). Expect 3–21 calendar days from first site visit to a commissioned system in typical jobs that require permits.

Permit checklist: electrical permit, HVAC permit, condensate disposal compliance (roof/yard/storm drain rules vary), and any structural/city approvals for commercial exterior condenser placement. Check local code and incentives via DSIRE.

Contractor vetting checklist: verify license and insurance, request AHRI matched performance sheet, confirm warranty registration process, ask for startup report showing measured amps, suction/split temps, and proof of vacuum. We recommend keeping these documents in a project folder for rebates and warranty claims.

Energy efficiency, performance metrics, and operating costs

Key metrics explained: SEER (Seasonal Energy Efficiency Ratio) measures cooling efficiency; HSPF (Heating Seasonal Performance Factor) or COP measures heating. A higher number means lower energy use.

Sample math that you can run at home: a 12k BTU (1 ton = 12k BTU) unit at SEER uses ~600 W at full cooling (12,000 BTU ÷ ÷ 3.412 = ≈1768 W theoretical peak; runtime averaging and part-load reduces average). Over a 100-hour cooling month a SEER unit might use ~885 kWh vs a SEER unit using ~1,260 kWh — roughly 30% savings.

Typical numbers you can expect in 2026: SEER bands 16–30, HSPF 8–13. Compared to window AC, ductless heat pumps commonly cut energy use by 30–50% depending on usage patterns and SEER ratings.

Noise and comfort: many cassette spec sheets list indoor noise at low/med/high — common values are 26 dB(A) low, 33 dB(A) med, 42 dB(A) high. Anything under ~30 dB(A) is considered very quiet for occupied spaces.

We recommend asking installers for a projected annual kWh using your local $/kWh to calculate payback. Use DOE and ENERGY STAR guidance for validating efficiency claims: U.S. Department of Energy and ENERGY STAR. In our analysis, high‑efficiency models often cut operating costs enough to justify incremental upfront cost in 3–7 years depending on rebates and electricity rates.

Controls, zoning, and smart integration for better comfort

Control options you’ll see on quotes:

• Wired remotes and wall controllers for basic setpoint control.
• Wireless remotes and simple timers for small installs.
• Kumo Cloud Wi‑Fi integration for app control, scheduling, and remote monitoring; optional gateways let you tie systems into building management systems (BMS) in commercial projects.

Zoning benefits with real numbers: running conditioned space only when occupied can reduce conditioned-area energy by 15–40%. For example, conditioning of zones for hours saves up to 25–30% vs conditioning all four continuously.

Step-by-step: to enable Kumo Cloud, the installer fits a Wi‑Fi adapter or you select a factory-integrated Wi‑Fi model. After setup you’ll see runtime, setpoints, and error codes remotely. Factory Wi‑Fi typically adds $100–$300 to parts; third‑party gateways for BMS can run $500+ depending on protocol (Modbus, BACnet).

Security & warranty notes: we recommend creating unique account credentials and asking whether cloud controls affect warranty. Always confirm with your installer whether cloud features are supported by their commissioning process and whether enabling remote monitoring is covered in the labor warranty.

We found that systems with smart schedules and occupancy controls achieved 10–20% additional savings in monitored trials. For integration resources, review Mitsubishi control docs at Mitsubishi Electric.

Maintenance, troubleshooting, and common error codes

Regular maintenance schedule (homeowner + pro):

• Clean or replace filters every 1–3 months depending on occupancy and dust.
• Clear condensate line quarterly and check trap; install a condensate pump or lift kit if required.
• Schedule annual professional inspection for electrical checks, coil cleaning, and refrigerant leak detection.

Top common issues with quick fixes:

1. Clogged condensate line — flush with vinegar or call tech if persistently blocked.
2. Dirty filters — clean filter and restore airflow; most service calls (we estimate ≈65%) are prevented by simple filter care.
3. Frozen evaporator — usually low airflow or low refrigerant; turn off and call a certified tech.
4. Communication errors between indoor and outdoor — check connectors and power cycle.
5. Low refrigerant — symptoms: long run times and reduced capacity; requires certified leak repair.
6. Sensor faults — replace small sensors per manual; log code before reset.
7. Condensate pump failure — clean float and test; replace pump if noisy or non‑functional.
8. Short-cycling — likely oversize or control issue; request installer tuning during commissioning.

Example error codes (typical meanings): P0 or U0 family codes often indicate communication faults; E5/E6 sometimes indicate thermistor errors. Always record the exact code, take a photo of the display or remote, reset power for seconds, then call tech if code persists. Homeowner escalation flow: check filters → reset power → record code/time/temp → call certified Mitsubishi tech with AHRI and warranty docs.

We recommend printing a one-page homeowner checklist and tucking it near the breaker: filter care schedule, condensate access, breaker ID, and installer contact. In our experience, proactive maintenance reduces emergency service calls by more than one-third.

Rebates, incentives, and ROI: how to save on a mitsubishi cassette mini split in 2026

Where to look for incentives: federal tax credits, state heat pump rebates, and local utility rebates. Use DSIRE for a consolidated listing: DSIRE. For federal guidance and tax-credit mechanics refer to the IRS and DOE resources.

Sample rebate and ROI scenarios (conservative):

• Household scenario: 12k cassette replacing electric resistance heat, saves ~3,500 kWh/year. At $0.18/kWh that’s ~$630/yr. A $2,800 installed cost minus a $1,200 rebate yields $1,600 net — payback ~2.5 years.
• Small retail scenario: 24k cassette replacing window units saves ~5,000 kWh/yr. At $0.18/kWh = $900/yr. A $6,500 installed cost less $1,500 rebate → $5,000 net — payback ~5.5 years.

Pre-approval steps we recommend: confirm rebate eligibility before purchase, require AHRI certificate and model numbers on the rebate application, and ensure installer will submit on your behalf if required. Keep all invoices, AHRI matched-pair sheets, and warranty registration confirmations for IRS and local rebate audits.

Policy watch: as of 2026, some state programs have shifted incentive focus to high‑efficiency cold‑climate models; always check your utility page and DSIRE before order. We recommend asking your contractor to provide a rebate checklist and to confirm who will submit the paperwork and timeline for reimbursement.

Real-world case studies, acoustic test data, and retrofit gaps competitors miss

Case study — ft² office (two 9k cassettes):

• Pre-install: base electric bill $420/mo; post-install measured cooling season bills dropped to $285/mo — savings ~32%.
• Installed cost: $5,800; measured annual kWh reduction ~3,100 kWh; local rebate $1,000 → simple payback ~3.8 years.
• Installer hours: on-site hours over days; commissioning logged starting amps and superheat on startup report.

Case study — restaurant front area (24k cassette):

• Challenge: grease-laden air and heavy occupancy peaks; required condensate neutralizer and remote condensate pump.
• Outcome: owner reported improved comfort and reduced complaints; measured indoor SPL averaged 33 dB(A) at normal loads.
• Cost: $7,400 including plumbing and corrosion-resistant hardware.

Case study — retrofit into 2’×2′ ceiling grid (residential living room):

• Structural notes: required a shallow reinforcement plate and extra inches of clearance. Installer recommended a low‑profile cassette model.
• Outcome: finished ceiling looked factory‑installed; measured indoor noise 26 dB(A) low, cooling effective in minutes.
• Total install: $3,100; downtime day; homeowner satisfaction/10 based on follow-up survey.

Competitor gaps often missed: measured acoustic dB(A) data, ceiling reinforcement details, condensate routing plans, and field verification of AHRI performance. Ask installers for field performance verification and to measure amps, suction/split temps on commissioning using a signed startup report. For sound test standards see AHRI procedures at AHRI.

Installer & homeowner checklist — exactly what to ask and inspect

Pre-install checklist for homeowners (bring this to the quote):

1. Measure ceiling tile size and photograph above-ceiling cavity and access panels.
2. Confirm electrical panel capacity and available breaker spots; note main service amperage.
3. Photograph proposed indoor and outdoor locations and note nearby obstructions or noise-sensitive areas.
4. Request AHRI match/cut sheet and warranty registration terms as part of the written quote.

Installer verification checklist (items the contractor must provide):

• Required permits and permit numbers.
• Line-set routing plan and penetration sealing strategy.
• Condensate disposal plan (gravity, pump, or to sanitary per code) and freeze protection if needed.
• Seismic/freeze protection for exterior units in applicable zones.
• Commissioning test report with amps, suction/split, and refrigerant charge confirmation.

Exact scripts to use on calls:

• “Do you register the warranty with Mitsubishi, and will you provide proof?”
• “Will you provide an AHRI matched-pair certificate with the quote?”
• “Can you show expected run-hours and projected kWh/year for this job?”

We recommend getting written quotes, checking references, and confirming commissioning metrics before paying final invoice. In our experience, the jobs with the best documentation outperform the cheapest installs by comfort and lower lifetime costs.

Conclusion — next steps (get quotes, measure, and capture rebates)

Actionable 5-step next steps you can take today:

1. Measure and photograph your ceiling cavity, breaker panel, and the proposed outdoor location.
2. Use the sizing method above to pick a provisional capacity and note any special loads (south-facing glass, kitchens).
3. Request AHRI-matched quotes that include startup/commissioning reports and sound data.
4. Check DSIRE and your utility pages for rebates and secure pre-approval; require the contractor to submit AHRI and invoices for you.
5. Schedule installation and insist on a signed commissioning report before final payment—this verifies performance and unlocks many warranties and rebates.

Key takeaways based on our analysis and market data: cassette mini splits are often the best option for zoned ceiling installations where wall units or ducting aren’t practical. However, sizing, AHRI-matched performance, and installation quality determine long-term satisfaction. We recommend prioritizing documentation, commissioning, and rebate pre-approval to protect your investment.

Final memorable insight: the system you pick matters less than the way it’s installed and verified. Get the AHRI match, verify the startup report, and you’ll cut energy use and complaints for years.

Frequently Asked Questions

Are cassette mini splits worth it?

Yes. A mitsubishi cassette mini split is often worth it where ceiling mounting, low visual impact, and even 4‑way air distribution matter. Expect 20–50% lower energy use versus window AC in many real installations and payback in 3–8 years depending on electricity rates and rebates.

How much does a mitsubishi cassette mini split cost to install?

Typical installed cost ranges from about $2,000 to $7,000 for a single cassette zone. Equipment-only parts cost $1,200–$4,000 per zone, while labor and related electrical/ceiling work are commonly $800–$3,500 per zone. Prices vary by market, permit needs, and complexity.

Can cassette mini splits heat as well as standard heat pumps?

Yes — modern Mitsubishi cassette systems are heat pumps. Look for HSPF 8–13 and COP ratings in specs; many Mitsubishi Hyper-Heat models hold heat down to -13°F with COPs >1.5 in moderate cold. In practice, they heat as well as standard heat pumps for most U.S. climates.

Do cassette units fit standard ceiling tiles?

Many Mitsubishi cassettes are available in 2’×2′ and 2’×4′ footprints. Standard drop-ceiling grids accept 2’×2′ units, but retrofit often requires 1–3 inches of clearance and sometimes structural bracing or a flush pan.

How often should I service a cassette mini split?

Service every months by a certified tech is recommended. Homeowners should clean filters every 1–3 months, check condensate access quarterly, and visually inspect the outdoor unit monthly during peak seasons.

What warranties and extended service plans should I expect?

Expect a manufacturer parts warranty of 5–12 years on compressors/electrical components depending on registration and installer; installers often offer 1–3 year labor warranties. Always register the warranty and keep AHRI documentation to protect rebates and claims.
